Door Trim Panel - Sliding: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

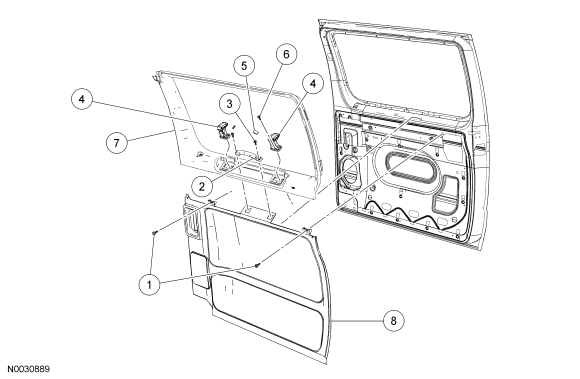

Fig 1: Exploded View Of Door Trim Panel - Sliding With Torque Specifications
GF0011241Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Screws (2 required)
2 22666 Sliding body side door pull handle
3 55922-S2 Pull handle screw (2 required)
4 - Window latches
5 22670 Pull handle screw access cover (2 required)
6 - Window latch screw (3 required each latch)
7 25508 Sliding body side door window garnish molding
8 27411 Sliding body side door trim panel
