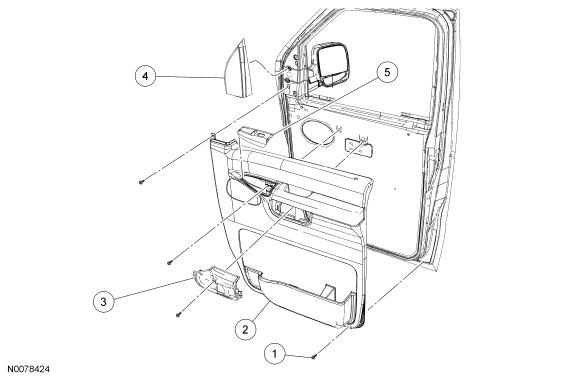

Door Trim Panel - Front: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RH side shown, LH side similar.
NOTE:
High series shown, low series similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
56914 |
Screw (4 required) |
| 2 |
23492 |
Front door trim panel |
| 3 |
22634 |
Front door handle bezel |
| 4 |
17K709 |
Rearview mirror fastener trim cover |
| 5 |
17B676 |
Power window/door lock switch bezel |
