Radiator Grille: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

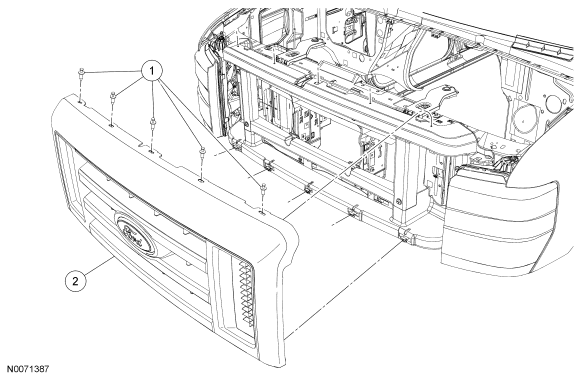

Fig 1: Exploded View Of Radiator Grille

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W713331	Radiator grille scrivets (5 required)
2	-	Radiator grille
