Radiator Grille Opening Panel Reinforcement - Lower: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

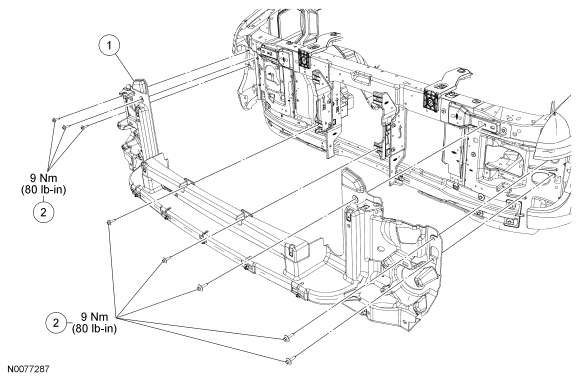

Fig 1: Exploded View Of Lower Radiator Grille Opening Panel Reinforcement With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8C008	Radiator grille opening panel reinforcement - lower
2	N606676-S	Radiator grille opening panel reinforcement screws
