Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

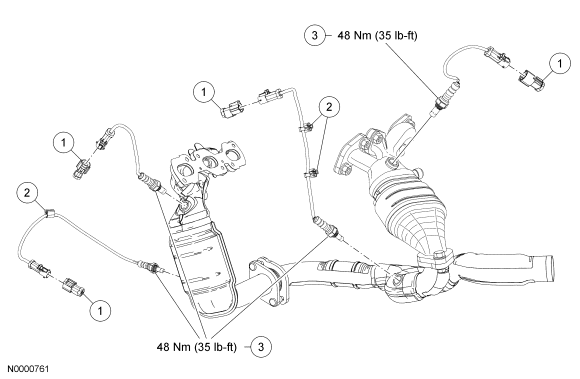

Fig 1: Exploded View Of Heated Oxygen Sensor HO2S & Catalyst Monitor Sensor With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Heated oxygen sensor (HO2S) and catalyst monitor sensor electrical connectors |
| 2 | 9G444/95318 | HO2S and catalyst monitor sensor wiring retainers (3 required) |
| 3 | 9G444/9F472 | HO2S and catalyst monitor sensors |
- For additional information, refer to the procedures.
