Auxiliary Mode Door Actuator: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

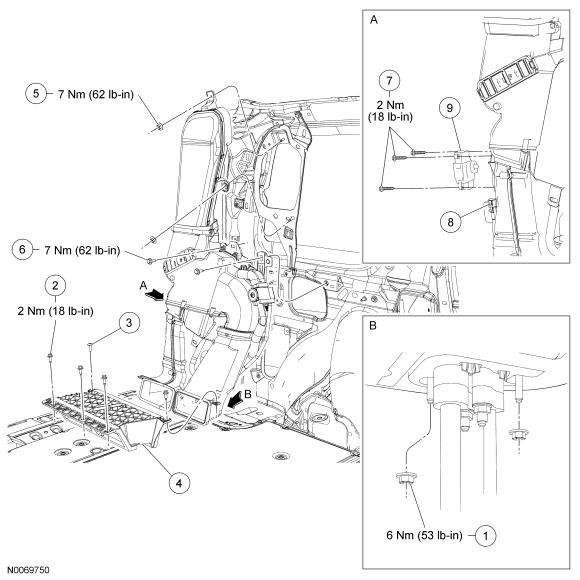

| Item | Part Number | Description |
|---|---|---|
| 1 | W707137 | Auxiliary line floorpan bracket nut (2 required) |
| 2 | W520212 | Battery airflow duct screw (4 required) |
| 3 | W706350 | Battery airflow duct pin-type retainer |
| 4 | 19A618 | Battery airflow duct |
| 5 | W701694 | Auxiliary climate control fresh air inlet duct nut (2 required) |
| 6 | W709735 | Auxiliary climate control housing bolt (2 required) |
| 7 | W701696 | Auxiliary airflow mode door actuator screws |
| 8 | - | Auxiliary airflow mode door actuator electrical connector (part of 19C603) |
| 9 | 19E616 | Auxiliary airflow mode door actuator |
