Auxiliary Evaporator Outlet and Inlet Line - Rear: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |
NOTE:
A/C service lines shown.
NOTE:
This vehicle is not equipped with an in-line thermostatic expansion valve (TXV) filter in the auxiliary evaporator inlet line fitting.

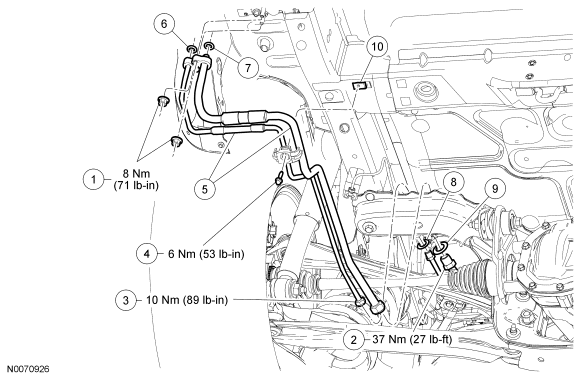

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Rear auxiliary evaporator outlet and inlet line rear fitting nuts (2 required) |
| 2 | - | Rear auxiliary evaporator outlet line tube-O fitting (service line only) |
| 3 | - | Rear auxiliary evaporator inlet line tube-O fitting (service line only) |
| 4 | W708060 | Rear auxiliary evaporator outlet and inlet line rear bracket bolt |
| 5 | 19A834 | Rear auxiliary evaporator outlet and inlet lines |
| 6 | 19E889 | O-ring seal |
| 7 | 19E889 | O-ring seal |
| 8 | 19E889 | O-ring seal |
| 9 | 19E889 | O-ring seal |
| 10 | W520822 | U-nut |
NOTE:
A/C service lines shown.

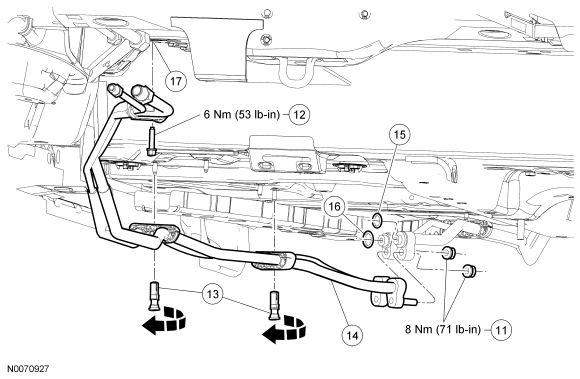

| Item | Part Number | Description |
|---|---|---|
| 11 | W520413 | Front auxiliary evaporator outlet and inlet line mid-joint fitting nuts (2 required) |
| 12 | W708060 | Rear auxiliary evaporator outlet and inlet line front bracket bolt |
| 13 | 18N332 | Rear auxiliary evaporator outlet and inlet line pin-type retainers (2 required) |
| 14 | 19A834 | Intermediate auxiliary evaporator outlet and inlet line |
| 15 | 19E889 | O-ring seal |
| 16 | 19E889 | O-ring seal |
| 17 | W520832 | U-nut |
