Auxiliary Evaporator Outlet and Inlet Line - Front: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |

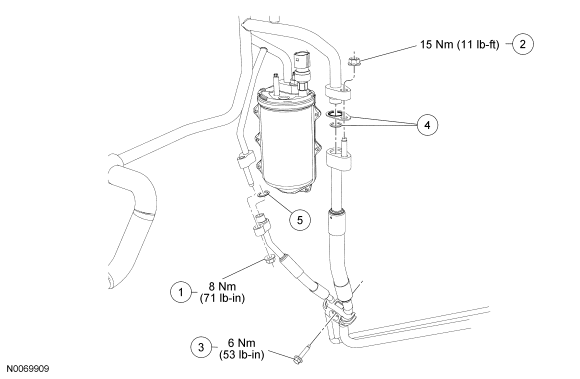

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Front auxiliary evaporator inlet line front fitting nut |
| 2 | W520413 | Front auxiliary evaporator outlet line fitting nut |
| 3 | W708060 | Front auxiliary evaporator outlet and inlet line bracket bolt |
| 4 | 19B596 | O-ring seal and gasket seal kit |
| 5 | 19E889 | O-ring seal |
NOTE:
A/C service lines shown.

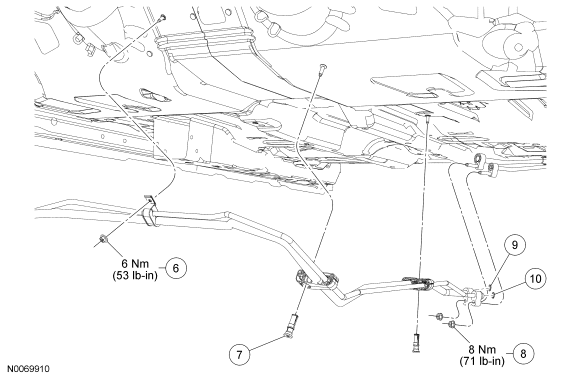

| Item | Part Number | Description |
|---|---|---|
| 6 | W707142 | Auxiliary line dash panel bracket nut |
| 7 | 18N332 | Auxiliary line bracket retainer (2 required) |
| 8 | W520413 | Front auxiliary evaporator outlet and inlet line mid-joint fitting nut (2 required) |
| 9 | 19E889 | O-ring seal |
| 10 | 19E889 | O-ring seal |
