Temperature Blend Door Actuator - LH: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

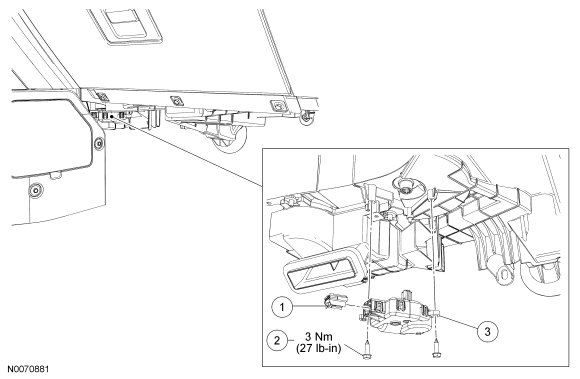

Fig 1: Temperature Blend Door Actuator Components - LH With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	LH temperature blend door actuator electrical connector (part of 19C887)
2	W701696	LH temperature blend door actuator screw (2 required)
3	19E616	LH temperature blend door actuator
