Door Trim Panel - Rear: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

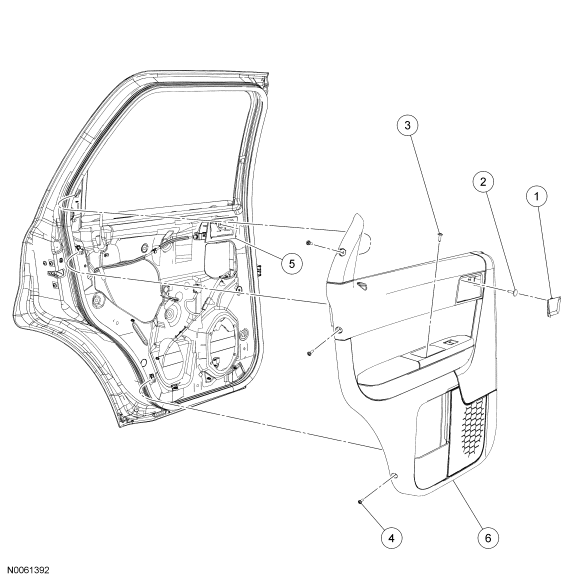

Escape shown, Mariner similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Door handle finish panel |
| 2 |
- |
Door handle screw |
| 3 |
W505004 |
Door handle pull cup screw |
| 4 |
W505004 |
Rear door trim panel screw (3 required) |
| 5 |
- |
Door handle |
| 6 |
27406 RH/ 27407 LH |
Rear door trim panel |
