Turbine Shaft Speed (TSS) Sensor

Turbine Shaft Speed (TSS) Sensor





Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Remove the retainers and the LH splash shield.

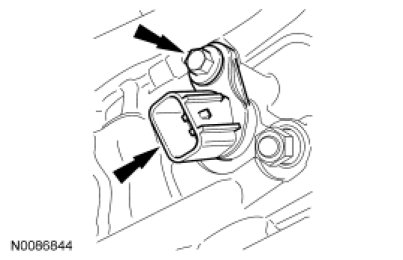

3. Disconnect the Turbine Shaft Speed (TSS) electrical connector, remove the bolt and the TSS sensor.





Installation

1. Install the TSS sensor, the bolt and connect the TSS electrical connector.
- Tighten to 10 Nm (89 lb-in).





2. Install the LH splash shield and the retainers.

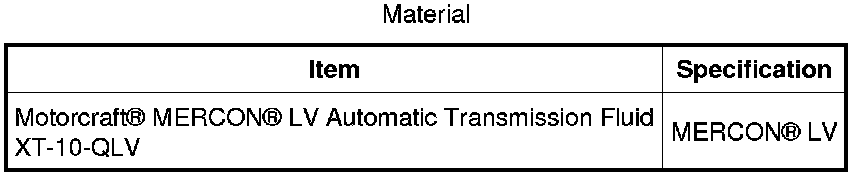

3. Fill with clean transmission fluid to the correct level.
