Inertia Fuel Shutoff Switch: Service and Repair

Inertia Fuel Shutoff (IFS) Switch

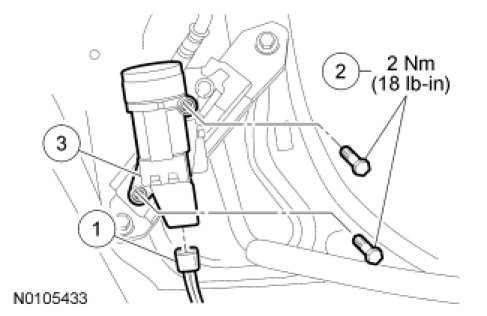

1. Remove the RH lower A-pillar trim panel.

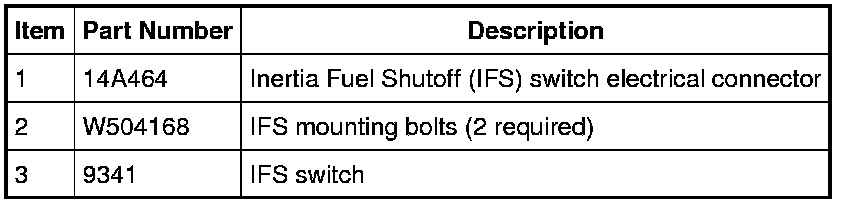

2. Disconnect the Inertia Fuel Shutoff (IFS) switch electrical connector.

3. Remove the 2 bolts and the IFS switch.
- To install, tighten to 2 Nm (18 lb-in).

4. To install, reverse the removal procedure.
