Throttle Body: Service and Repair

Throttle Body

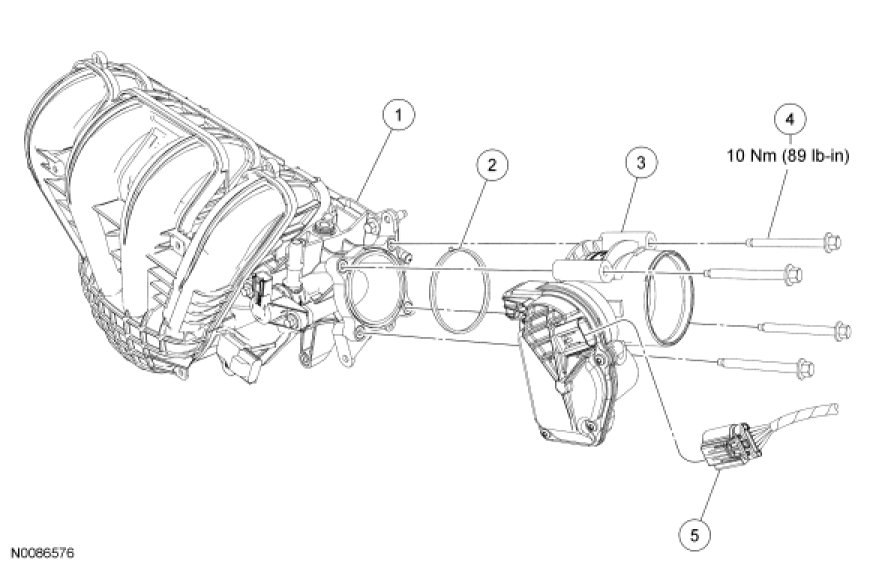

1. Remove the Air Cleaner (ACL) outlet pipe. For additional information, refer to Fuel Delivery and Air Induction.

2. Disconnect the electrical throttle control electrical connector.

3. NOTE: Discard the Throttle Body (TB) gasket.

Remove the 4 bolts and the TB.

- Install a new TB gasket.

- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
