Parking Assist Switch: Service and Repair

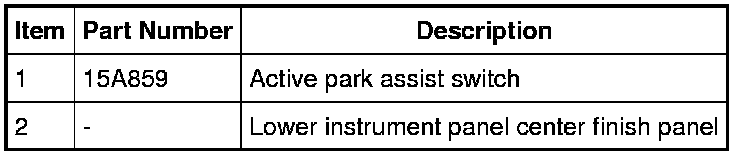

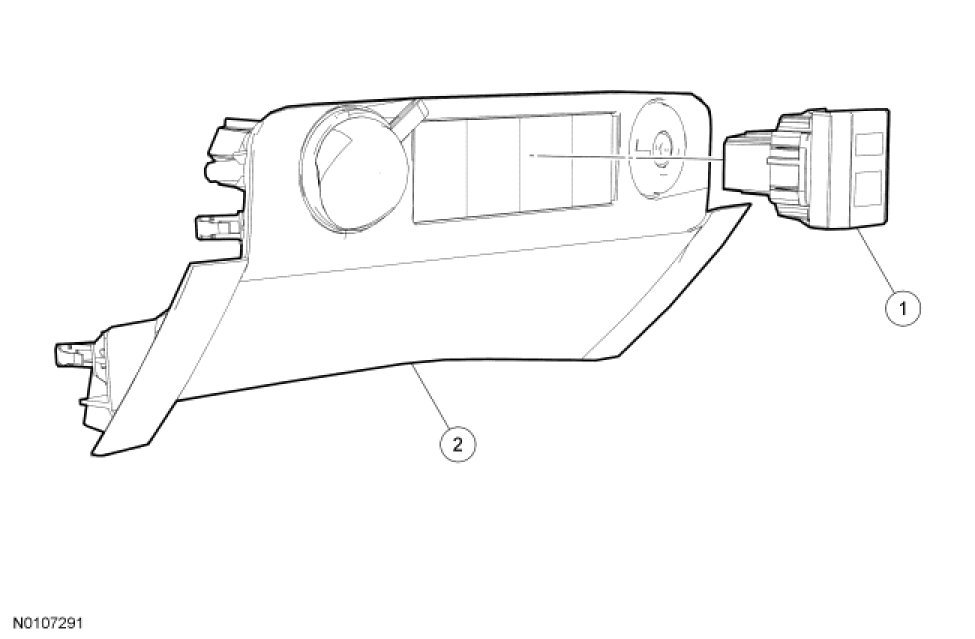

Active Park Assist Switch









Removal

1. Remove the lower instrument panel center finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

2. Disconnect the electrical connector.

3. Remove the active park assist switch from the lower instrument panel center finish panel.

4. To install, reverse the removal procedure.
