Drive Pinion: Notes
WARNING: This page is about a different car, the 2007 Ford F550 Super Duty and 2007 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Remover, Yoke | 205-433 |
Material
| Item | Specification |
|---|---|
| Stud and Bearing Mount TA-27 |
WSK-M2G349-A1 |

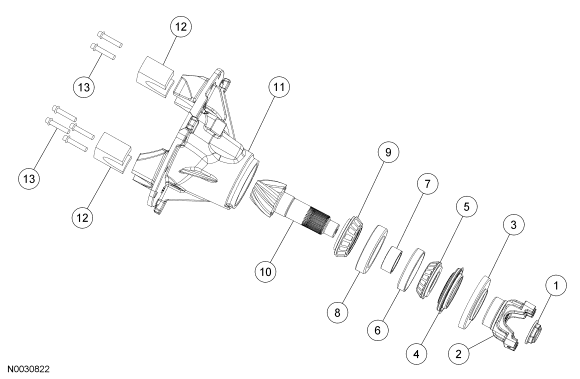

| Item | Part Number | Description |
|---|---|---|
| 1 | 4320 | Pinion hex nut |
| 2 | 4851 | Pinion yoke |
| 3 | 4670 | Pinion oil seal slinger |
| 4 | 4676 | Pinion oil seal |
| 5 | 4630 | Outer pinion bearing |
| 6 | 4616 | Outer pinion bearing cup |
| 7 | 4537 | Pinion preload spacer (selective) |
| 8 | 4628 | Inner pinion bearing cup |
| 9 | 4621 | Inner pinion bearing |
| 10 | 4209 | Rear axle drive pinion |
| 11 | 4141 | Carrier housing |
| 12 | - | Differential bearing caps (part of 4141) |
| 13 | - | Differential bearing cap bolts (part of 4141) |
