Differential Case and Ring Gear: Notes
WARNING: This page is about a different car, the 2007 Ford F550 Super Duty and 2007 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Holding Fixture, Transmission | 307-003 (T57L-500-B) | |
| Installer, Wheel Speed Sensor Ring | 206-041 (T89P-20202-A) | |
| Puller, Bearing | 205-D064 (D84L-1123-A) or equivalent | |
| Remover/Installer, Front Wheel Hub | 204-069 (T81P-1104-C) | |
| Step Plate | 205-D020 (D80L-630-9) or equivalent |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) (vehicles with the trailer towing option or 4:10 ratio) |
WSL-M2C192-A |
| Threadlock 262 TA-26 |
WSK-M2G351-A6 |

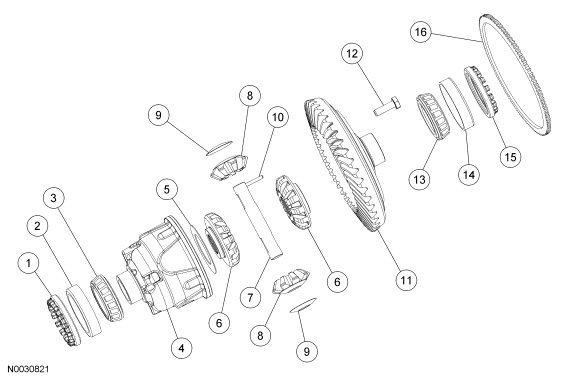

Fig 1: Identifying Differential Case And Ring Gear - Dana Model S110 Conventional Wheel Differential Assembly, Disassembled View
| Item | Part Number | Description |
|---|---|---|
| 1 | 4067 | Differential bearing adjusting ring |
| 2 | 4222 | Differential side bearing cup |
| 3 | 4221 | Differential side bearing cone |
| 4 | 4204 | Differential case (conventional differential) |
| 5 | 4228 | Differential side gear thrust washer |
| 6 | 4237 | Differential side gears (conventional differential) |
| 7 | 4211 | Differential pinion shaft |
| 8 | 4215 | Differential pinion gears |
| 9 | 4230 | Differential pinion thrust washers |
| 10 | 4241 | Differential pinion shaft pin (conventional differential) |
| 11 | 4209 | Differential ring gear |
| 12 | 4558 | Differential ring gear bolt |
| 13 | 4221 | Differential side bearing cone |
| 14 | 4222 | Differential side bearing cup |
| 15 | 4067 | Differential bearing adjusting ring |
| 16 | 4B409 | Anti-lock speed sensor ring |

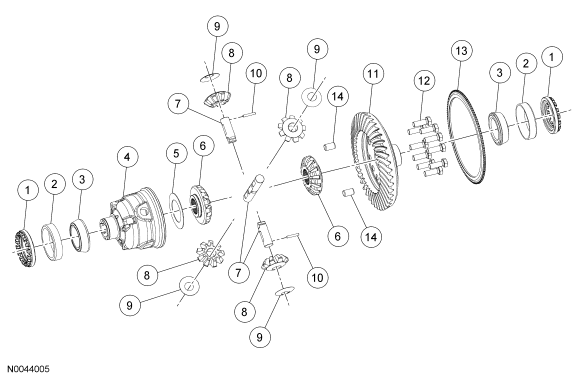

Fig 2: Identifying Differential Case and Ring Gear - Dana Model S130 Conventional Wheel Differential Assembly, Disassembled View
| Item | Part Number | Description |
|---|---|---|
| 1 | 4067 | Differential bearing adjusting rings |
| 2 | 4222 | Differential side bearing cups |
| 3 | 4221 | Differential side bearing cones |
| 4 | 4204 | Differential case |
| 5 | 4228 | Differential side gear thrust washer |
| 6 | 4237 | Differential side gears |
| 7 | 4211 | Differential pinion shafts |
| 8 | 4215 | Differential pinion gears |
| 9 | 4230 | Differential pinion thrust washers |
| 10 | 4241 | Differential pinion shaft pins |
| 11 | 4209 | Differential ring gear |
| 12 | 4558 | Differential ring gear bolt |
| 13 | 4B409 | Anti-lock speed sensor ring |
| 14 | 132821 | Locating dowels |
