Wheel Hub: Removal

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the tire and wheel assembly. For additional information, refer to WHEELS & TIRES .
Remove the anchor plate. For additional information, refer to REAR DISC BRAKE .

Fig 1: Locating Anchor Plate
Courtesy of FORD MOTOR CO.
Remove the axle shaft. For additional information, refer to AXLE SHAFT in this section.

Fig 2: Locating Axle Shaft
Courtesy of FORD MOTOR CO.

F350

NOTE: Make sure that the drive tangs on the special tool engage the 4 slots of the hub nut.

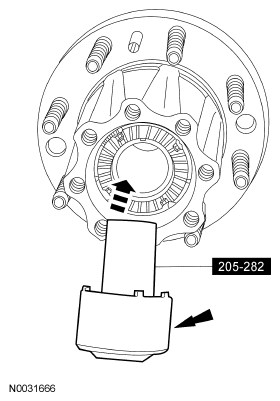

Fig 3: Removing Hub Nut Using Special Tool

Courtesy of FORD MOTOR CO.

Using the special tool, remove the hub nut.

F450 and F550

Using a suitable socket, remove the hub nut.

Fig 4: Removing Hub Nut
Courtesy of FORD MOTOR CO.

All vehicles

Remove the outer rear wheel bearing.

Fig 5: Locating Outer Rear Wheel Bearing
Courtesy of FORD MOTOR CO.
Remove the rear hub and brake disc assembly.
Remove the bolts and separate the rear hub from the rear brake disc.

Fig 6: Locating Rear Hub Bolts
Courtesy of FORD MOTOR CO.
Inspect the rear hub for the following:
- Cracks and damage around the bolt holes.
- Oversized holes.
