Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL REFERENCE

G06097230Courtesy of FORD MOTOR CO.
 Adapters for 303-290A 303-290A-01
G06097855Courtesy of FORD MOTOR CO.
 Adapter for 303-290A (Lifting Hook)
303-290A-12
G06097231Courtesy of FORD MOTOR CO.
 Adapter for 313-290A (Support Leg)
303-290A-03A
G06097233Courtesy of FORD MOTOR CO.
 Support Bar, Engine 303-290A

Transmission Insulator and Retainer - Upper

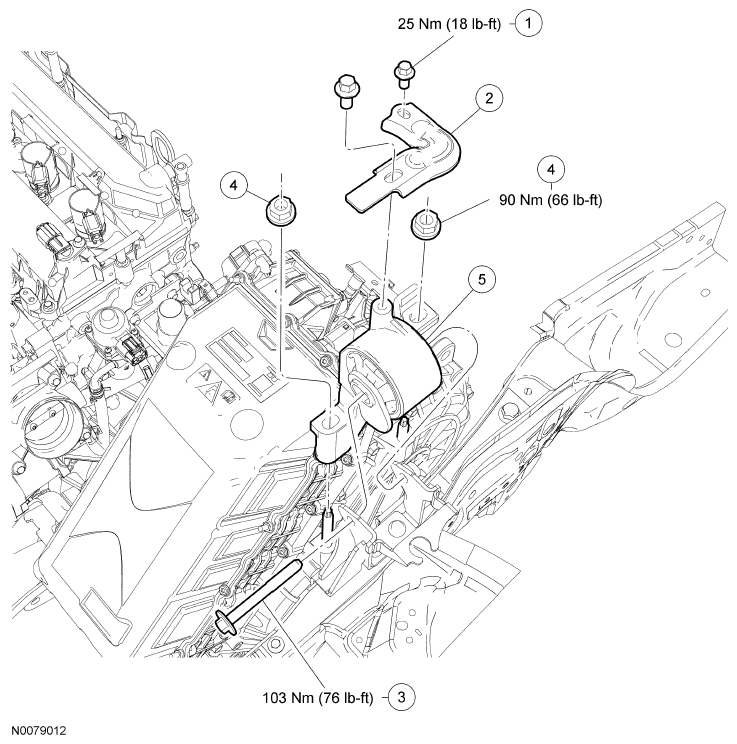

Fig 1: Identifying Transmission Insulator And Retainer - Upper
G06097858Courtesy of FORD MOTOR CO.
PART NUMBER DESCRIPTION

Item Part Number Description
1 W710344 Upper insulator bracket bolt (2 required)
2 6B011 Upper insulator bracket
3 W710173 Upper insulator through bolt
4 W520415 Upper insulator nuts (2 required)
5 B3HM000905 Upper insulator
