Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Transmission Insulator and Retainer - Lower

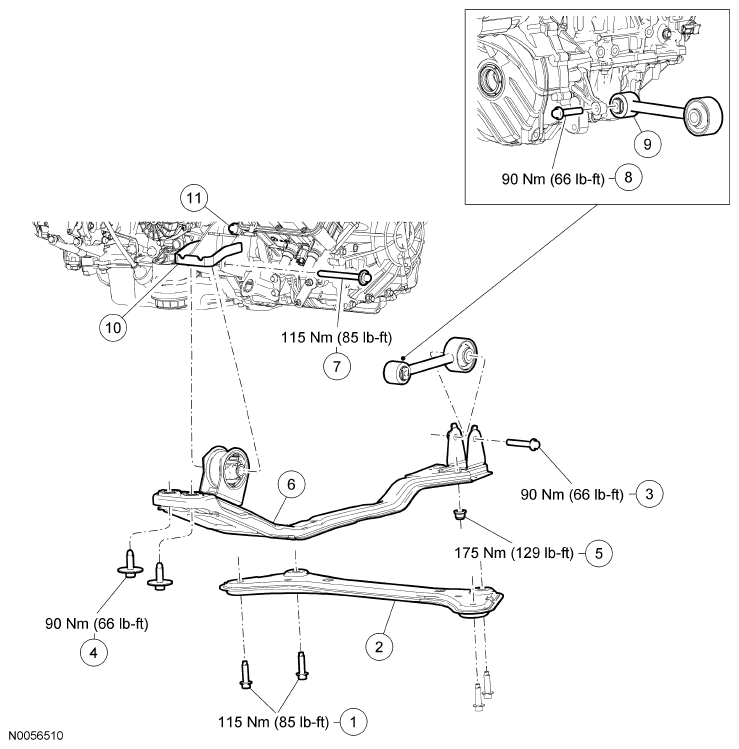

Fig 1: Identifying Transmission Insulator And Retainer With Lateral Support Crossmember - Lower

Courtesy of FORD MOTOR CO.

PART NUMBER DESCRIPTION

Item	Part Number	Description
1	W500644	Lateral support crossmember bolts (4 required)
2	5B112-A	Lateral support crossmember support
3	W500146	Rear roll restrictor-to-crossmember through bolt
4	W706899	Engine support crossmember bolt (2 required)
5	W710553	Engine support crossmember nut
6	6P094-A	Crossmember
7	W711268	Lower insulator through bolt
8	W500044	Rear roll restrictor through bolt
9	6P082	Rear roll restrictor
10	6A060	Lower insulator bracket
11	W500321	Lower insulator bracket bolt (3 required)

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Turn the ignition to the OFF position.
Remove the splash shield retainers and remove the LH splash shield.

Fig 2: Locating Retainers For LH Splash Shield
Courtesy of FORD MOTOR CO.
Remove the bolts and the lateral support crossmember.
- To install, tighten to 115 Nm (85 lb-ft).
Fig 3: Locating Lateral Support Crossmember And Bolts
Courtesy of FORD MOTOR CO.
Remove the lower insulator through bolt.
- To install, tighten to 115 Nm (85 lb-ft).
Fig 4: Locating Lower Insulator Bolt
Courtesy of FORD MOTOR CO.
Remove the rear roll restrictor-to-crossmember through bolt.
- To install, tighten to 90 Nm (66 lb-ft).
Fig 5: Locating Rear Roll Restrictor-To-Crossmember Bolt
Courtesy of FORD MOTOR CO.
Remove and discard the engine support crossmember nut. Remove the 2 engine support crossmember bolts.
- To install, tighten the new engine support crossmember nut to 175 Nm (129 lb-ft).
- To install, tighten the 2 engine support crossmember bolts to 90 Nm (66 lb-ft).
Fig 6: Locating Engine Support Crossmember Nut And Bolts
Courtesy of FORD MOTOR CO.
Remove the engine support crossmember.
Remove the rear roll restrictor through bolt and remove the rear roll restrictor from the bracket.
- To install, tighten to 90 Nm (66 lb-ft).

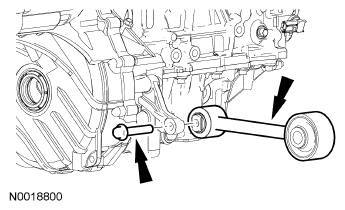

Fig 7: Locating Lower Rear Insulator Bolt And Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
