Thermostatic Expansion Valve: Notes
WARNING: This page is about a different variant/trim than selected.

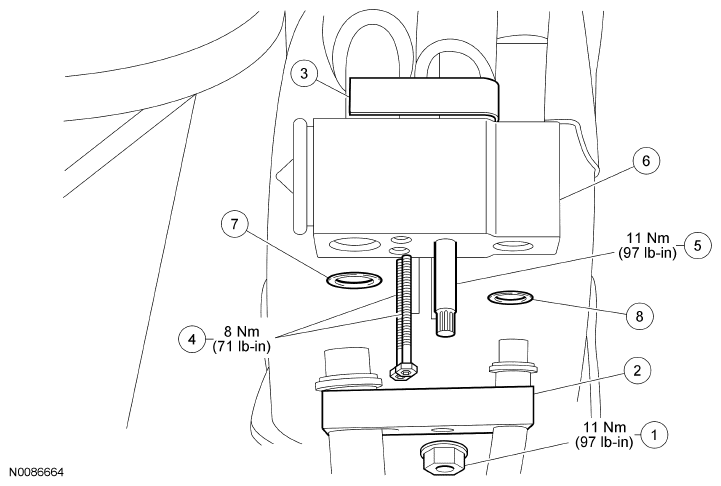

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W707142 | Thermostatic Expansion Valve (TXV)-to-lower bracket nut |
| 2 | 19866 | TXV lower bracket |
| 3 | 19866 | TXV upper bracket |
| 4 | 7A771 | TXV-to-upper bracket bolts (2 required) |
| 5 | - | TXV stud (part of 19849) |
| 6 | 19849 | TXV |
| 7 | 19E889 | O-ring seal |
| 8 | 19E889 | O-ring seal |
