Auxiliary Evaporator Outlet and Inlet Line - Front: Material
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D | WSH-M1C231-B |
Front Connection

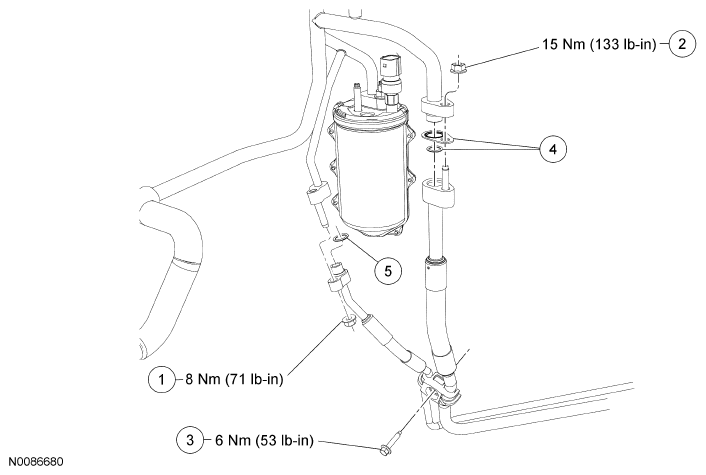

Fig 1: Exploded View Of Auxiliary Evaporator Outlet And Inlet Line - Front With Torque Specifications
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Front auxiliary evaporator inlet line front fitting nut |
| 2 | W520413 | Front auxiliary evaporator outlet line fitting nut |
| 3 | W708060 | Front auxiliary evaporator outlet and inlet line bracket bolt |
| 4 | 19B596 | O-ring seal and gasket seal kit |
| 5 | 19E889 | O-ring seal |

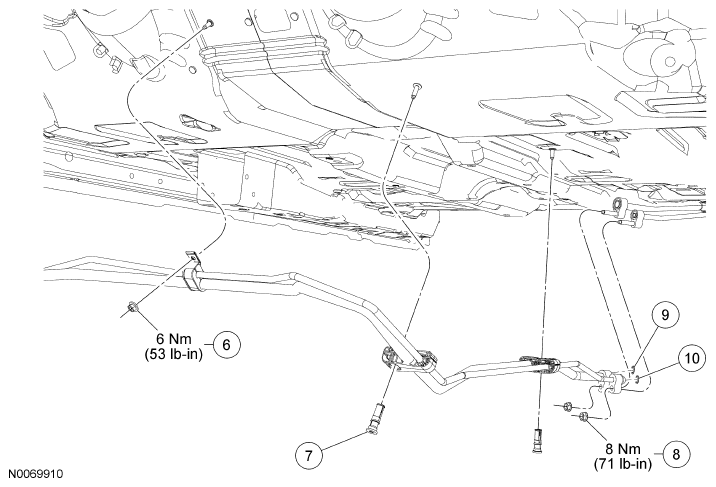

Intermediate Connection
NOTE:
A/C service lines shown.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 6 | W707142 | Auxiliary line dash panel bracket nut |
| 7 | 18N332 | Auxiliary line bracket retainer (2 required) |
| 8 | W520413 | Front auxiliary evaporator outlet and inlet line mid-joint fitting nut (2 required) |
| 9 | 19E889 | O-ring seal |
| 10 | 19E889 | O-ring seal |
