Auxiliary Climate Control Housing: Material
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D | WSH-M1C231-B |

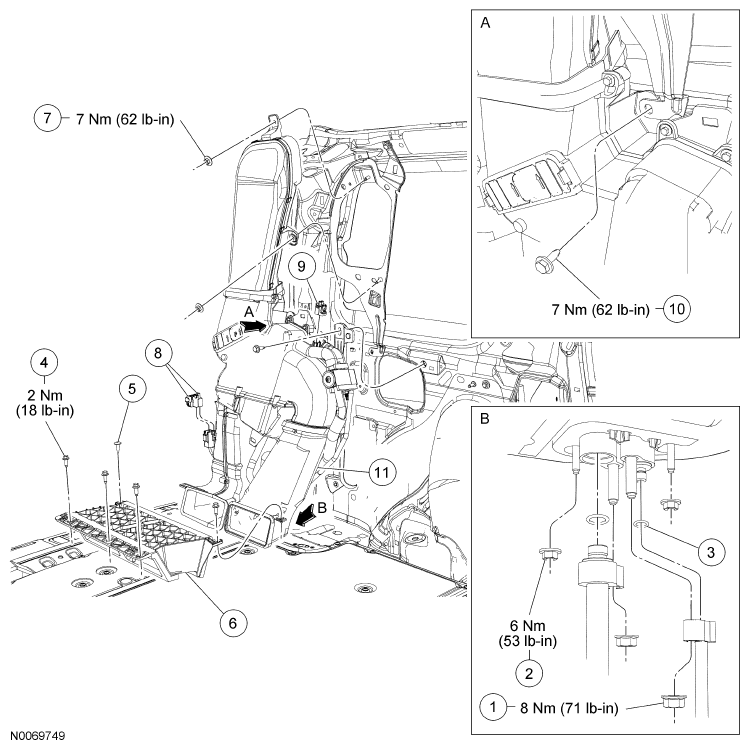

Fig 1: Auxiliary Climate Control Housing And Related Replacement Components With Torque Specifications
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Rear auxiliary evaporator outlet and inlet line rear fitting nut (2 required) |
| 2 | W707137 | Auxiliary line floorpan bracket nut (2 required) |
| 3 | 19E889 | O-ring seal (2 required) |
| 4 | W520212 | Battery airflow duct screw (4 required) |
| 5 | W706350 | Battery airflow duct pin-type retainer |
| 6 | 19A618 | Battery airflow duct |
| 7 | W701694 | Auxiliary climate control fresh air inlet duct nut (2 required) |
| 8 | - | Auxiliary harness electrical connectors (part of 14405) |
| 9 | - | Auxiliary evaporator discharge air temperature sensor electrical connector (part of 14405) |
| 10 | W709735 | Auxiliary climate control housing bolt (2 required) |
| 11 | 10B810 | Auxiliary climate control housing |
