Special Tool(s)
WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS DESCRIPTION CHART
| Powertrain Lift 014-00765 or equivalent |

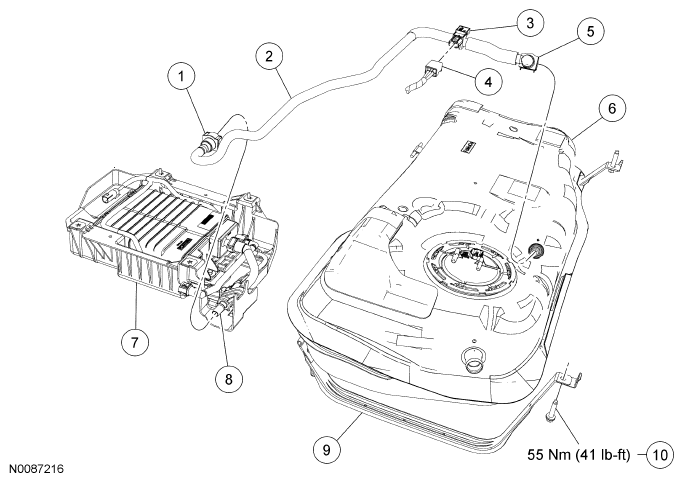

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel vapor tube assembly-to-fuel vapor vent valve quick connect coupling (part of 9D668) |
| 2 | 9D668 | Fuel vapor tube assembly |
| 3 | - | Fuel Tank Pressure (FTP) sensor (part of 9D668) |
| 4 | 14A464 | FTP sensor electrical connector |
| 5 | - | Fuel vapor tube assembly-to-fuel tank quick connect coupling (part of 9D668) |
| 6 | 9002 | Fuel tank |
| 7 | 9E857 | Evaporative Emission (EVAP) canister assembly |
| 8 | 9G712 | Fuel vapor vent valve |
| 9 | 9092 | LH fuel tank strap |
| 10 | W705100 | Fuel tank strap bolt |
