Evaporative Emission Canister: Notes
WARNING: This page is about a different variant/trim than selected.

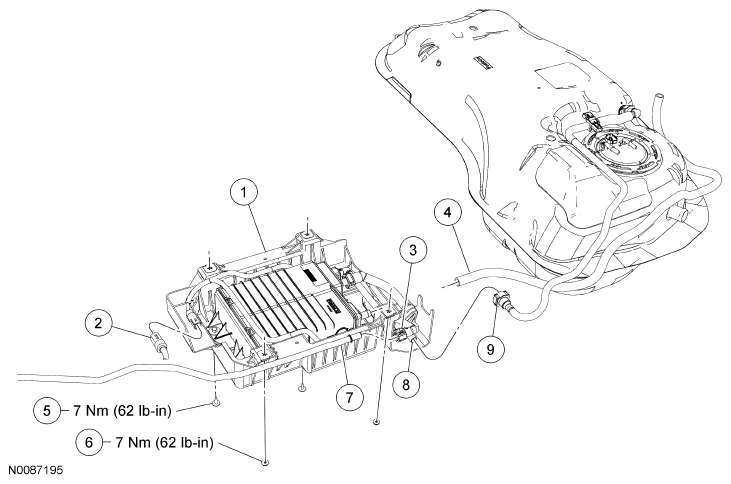

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9E857 | Evaporative Emission (EVAP) canister assembly |
| 2 | 14A464 | EVAP canister electrical connector |
| 3 | - | EVAP canister purge tube quick connect coupling (part of 9E857) |
| 4 | 9S327 | Fresh air tube |
| 5 | W707257 | EVAP canister bolt (2 required) |
| 6 | W707137 | EVAP canister nut (2 required) |
| 7 | 9J279 | Fuel vapor tube |
| 8 | 9G712 | Fuel vapor vent valve |
| 9 | - | Fuel vapor tube assembly-to-fuel vapor vent valve quick connect coupling (part of 9D668) |
