Evaporative Emission Canister Vent Solenoid: Notes
WARNING: This page is about a different variant/trim than selected.

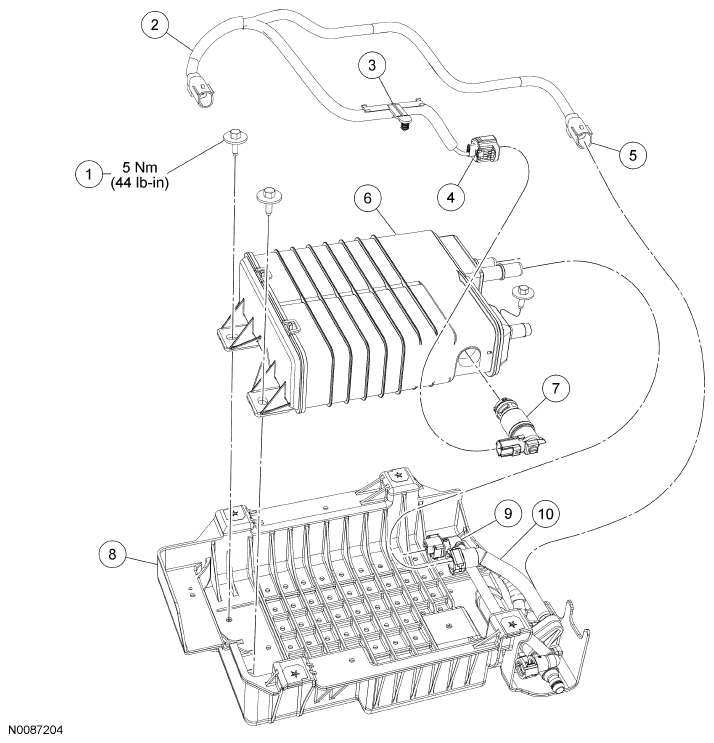

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W708029 | Evaporative Emission (EVAP) canister tray bolt (3 required) |
| 2 | 14C018 | EVAP canister wire harness |
| 3 | - | EVAP canister wire harness pin-type retainer (part of 14C018) |
| 4 | - | EVAP canister vent solenoid electrical connector (part of 14C018) |
| 5 | - | Fuel vapor vent valve electrical connector (part of 14C018) |
| 6 | - | EVAP canister (part of 9E857) |
| 7 | 9F945 | EVAP canister vent solenoid |
| 8 | - | EVAP canister tray |
| 9 | - | Fuel vapor vent valve-to-EVAP canister quick connect coupling (part of 9G712) |
| 10 | - | EVAP canister purge tube-to-EVAP canister quick connect coupling (part of 9E857) |
