Evaporative Emission Canister Purge Valve
WARNING: This page is about a different variant/trim than selected.

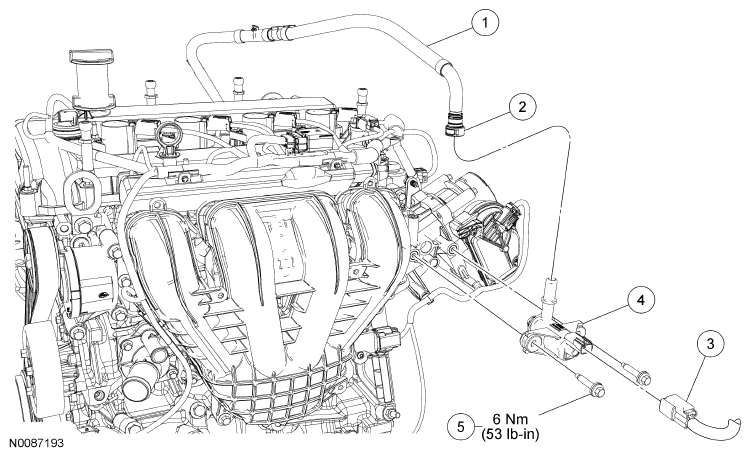

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9D289 | Fuel vapor tube |
| 2 | - | Fuel vapor tube-to-Evaporative Emission (EVAP) canister purge valve quick connect coupling (part of 9D289) |
| 3 | 14A464 | EVAP canister purge valve electrical connector |
| 4 | 9G866 | EVAP canister purge valve |
| 5 | W503278 | EVAP canister purge valve bolt (2 required) |
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Disconnect the Evaporative Emission (EVAP) canister purge valve electrical connector.
- Disconnect the fuel vapor tube-to-EVAP canister purge valve quick connect coupling. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
- Remove the 2 bolts and the EVAP canister purge valve.
- To install, tighten to 6 Nm (53 lb-in).
- To install, reverse the removal procedure.
- Carry out the Evaporative Emission System Leak Test. For additional information, refer to EVAPORATIVE EMISSION SYSTEM LEAK TEST .
