Motor Electronics Pump

WARNING: This page is about a different variant/trim than selected.

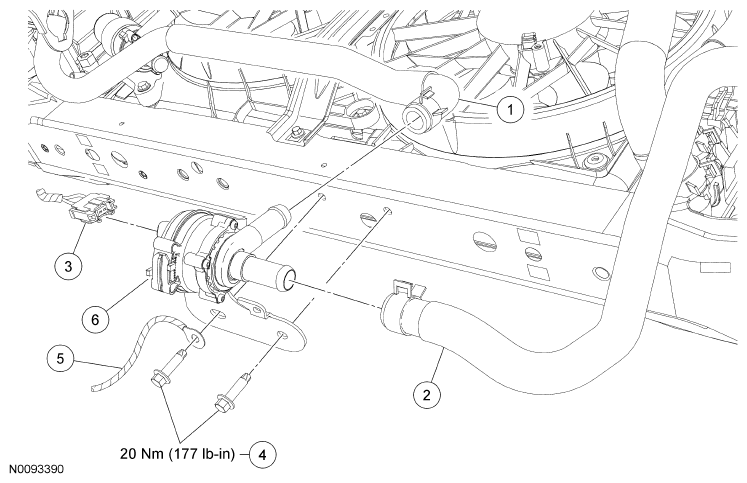

Fig 1: Identifying Motor Electronics Pump Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PART NUMBER DESCRIPTION

Item	Part Number	Description
1	15179-B	Motor Electronics Cooling System (MECS) coolant pump outlet hose
2	8A567-B	MECS coolant pump inlet hose
3	14A464	MECS coolant pump electrical connector
4	8005-B	MECS coolant pump bolts
5	-	Ground strap
6	8C419	MECS coolant pump

Drain the Motor Electronics Cooling System (MECS). For additional information, refer to MOTOR ELECTRONICS COOLING SYSTEM DRAINING AND FILLING .
Disconnect the MECS inlet and outlet hoses.
- Disconnect the harness connector.
Fig 2: Locating MECS Inlet And Outlet Hoses
Courtesy of FORD MOTOR CO.
Remove the MECS coolant pump bolts and ground strap.
- To install, tighten to 20 Nm (177 lb-in).
Fig 3: Locating Ground Strap Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
