Upper Intake Manifold (View 1 of 2)

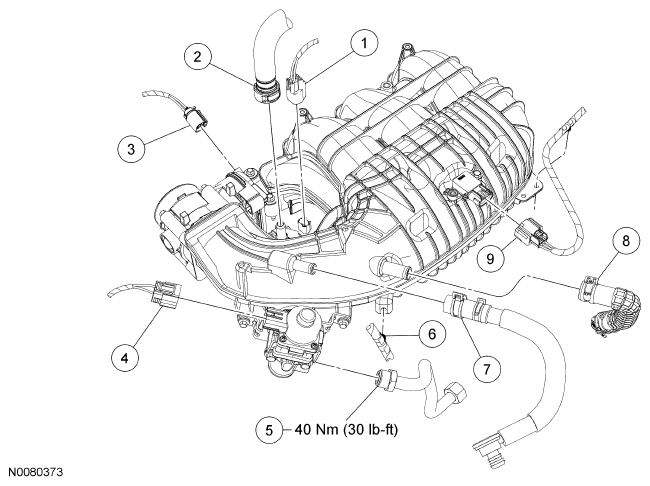

Fig 1: Identifying Upper Intake Manifold Components (1 Of 2)

Courtesy of FORD MOTOR CO.

PART NUMBER DESCRIPTION

Item	Part Number	Description
1	14A464	Evaporative Emission (EVAP) canister purge valve electrical connector (part of 12C508)
2	9D289	EVAP tube-to-EVAP canister purge valve quick connect coupling
3	14A464	Electronic throttle control electrical connector (part of 12C508)
4	14A464	EGR regulator electrical connector (part of 12C508)
5	-	EGR tube fitting (part of 9D477)
6	W700497	Engine control wiring harness retainer (part of 12C508) (2 required)
7	-	Brake booster vacuum tube
8	6K817	PCV tube
9	14A464	Manifold Absolute Pressure (MAP) electrical connector (part of 12C508)

Upper Intake Manifold (View 2 of 2)

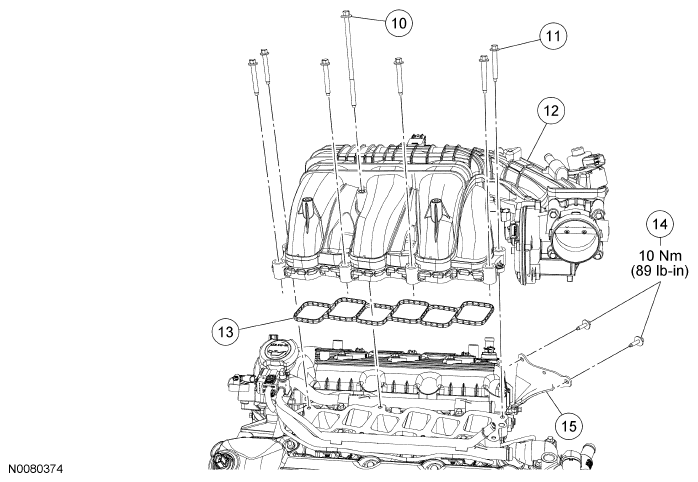

Fig 2: Identifying Upper Intake Manifold Components (2 Of 2)

Courtesy of FORD MOTOR CO.

PART NUMBER DESCRIPTION

Item	Part Number	Description
10	W713391	Upper intake manifold bolt
11	9Y450	Upper intake manifold bolt (6 required)
12	9424	Upper intake manifold
13	-	Upper intake manifold gasket
14	W701775	Upper intake manifold support bracket bolts (2 required)
15	9J444	Upper intake manifold support bracket
