Oil Level Indicator and Tube: Material

WARNING: This page is about a different variant/trim than selected.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

Oil Level Indicator and Tube

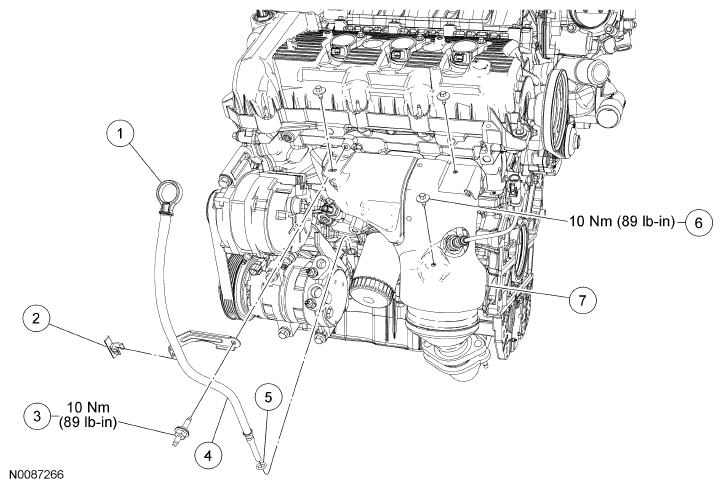

Fig 1: Identifying Oil Level Indicator And Tube

Courtesy of FORD MOTOR CO.

PART NUMBER DESCRIPTION

Item	Part Number	Description
1	6750	Oil level indicator
2	13A506	Wiring harness retainer (part of 12A581)
3	W701822	Oil level indicator tube stud bolt
4	6754	Oil level indicator tube
5	110282	Oil level indicator O-ring seal
6	W503921	Heat shield bolt (3 required)
7	5K282	Heat shield

Upper Radiator Support Brackets

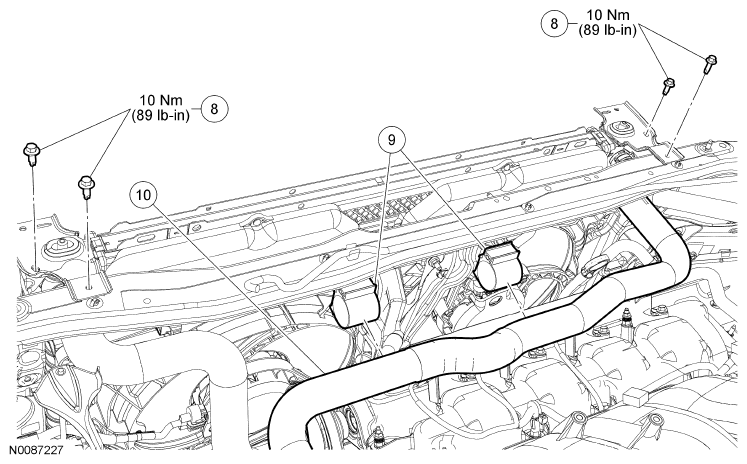

Fig 2: Identifying Upper Radiator Support Brackets With Bolts

Courtesy of FORD MOTOR CO.

PART NUMBER DESCRIPTION

Item	Part Number	Description
8	W707399	Upper radiator support bracket bolts
9	-	Upper radiator hose retaining clips (part of 8B274)
10	8B274	Upper radiator hose
