Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
  2. Remove the engine support insulator bracket bolt.
    • To install, tighten to 90 Nm (66 lb-ft).
  3. Install the Engine Support Bar, Universal Adapter Brackets and a suitable piece of chain in the following sequence.
    1. Position the 2 Universal Adapter Brackets on top of the cylinder block.
    2. Install 2 M8 x 1.25 x 36 mm (1.41 in) bolts and tighten to 10 Nm (89 lb-in).
    3. Use a suitable piece of chain.
    4. Fasten the chain to the 2 Universal Adapter Brackets with a suitable nut, washer and bolt.
      Fig 1: Positioning Universal Adapter Brackets On Top Of Cylinder Block
      G06095626Courtesy of FORD MOTOR CO.
  4. Using the Engine Support Bar, lift the engine 12 mm (0.47 in).

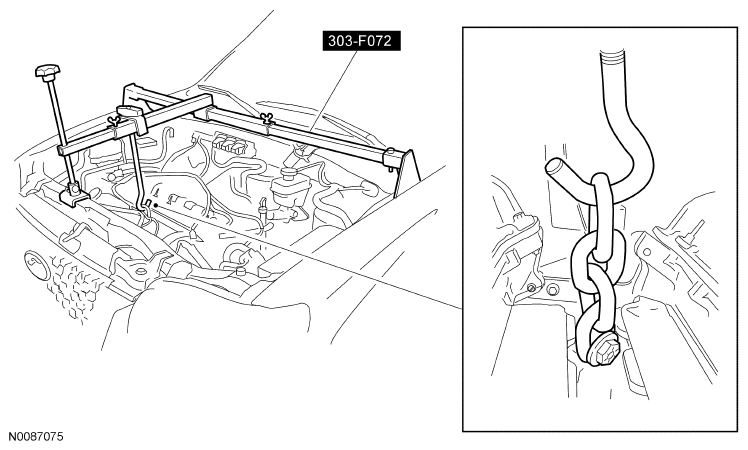

    Fig 2: Lifting Engine
    G06095627Courtesy of FORD MOTOR CO.
  5. Remove the nut and ground wire eyelet from the engine support insulator bracket stud.
    • To install, tighten to 25 Nm (18 lb-ft).
  6. Remove the 3 nuts and the engine support insulator bracket.
    • To install, tighten to 55 Nm (41 lb-ft).
  7. Remove the 3 bolts and the engine support insulator.
    • To install, tighten to 48 Nm (35 lb-ft).
  8. To install, reverse the removal procedure.
