Engine Front Cover: Material
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A | - |
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent | WSS-M2C930-A |
| Silicone Gasket and Sealant TA-30 | WSE-M4G323-A4 |

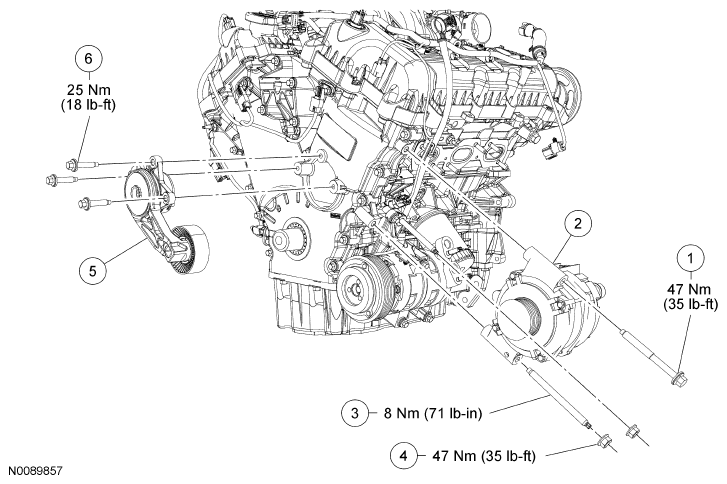

Engine Front Cover (View 1 of 3)
PART NUMBER DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W709986 | Generator bolt |
| 2 | 10300 | Generator |
| 3 | W710416 | Generator stud |
| 4 | W520414 | Generator stud nut (2 required) |
| 5 | 6B209 | Accessory drive belt tensioner |
| 6 | W503297 | Accessory drive belt tensioner bolt (3 required) |

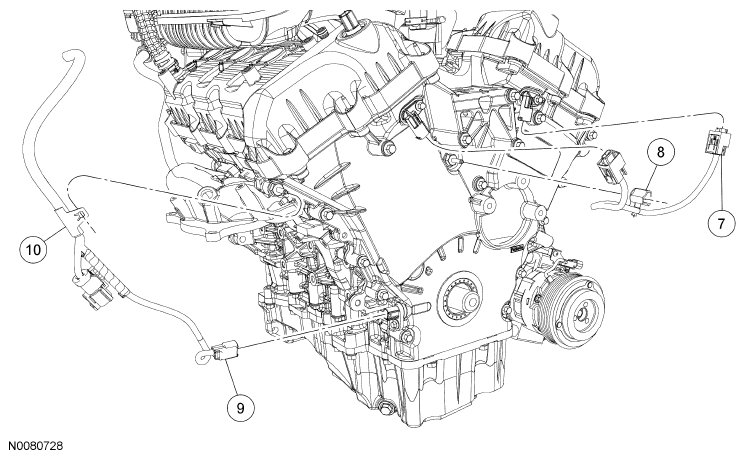

Engine Front Cover (View 2 of 3)
PART NUMBER DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 7 | 14A464 | Camshaft Position (CMP) sensor electrical connector (part of 12A581) (2 required) |
| 8 | - | CMP sensor wiring harness retainer (part of 12A581) |
| 9 | 14A464 | Crankshaft Position (CKP) electrical connector (part of 12A581) |
| 10 | - | CKP wiring harness retainer (part of 12A581) |

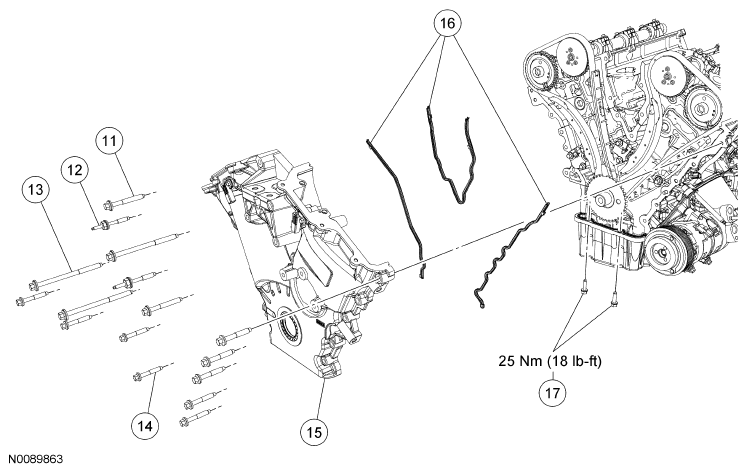

Engine Front Cover (View 3 of 3)
PART NUMBER DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 11 | W708222 | Engine front cover bolt (2 required) |
| 12 | W710030 | Engine front cover stud bolt (2 required) |
| 13 | W708221 | Engine front cover bolt (2 required) |
| 14 | W701525 | Engine front cover bolt (10 required) |
| 15 | 6019 | Engine front cover |
| 16 | 6D081 | Engine front cover gaskets |
| 17 | W709678 | Oil pan-to-front cover bolts |
