Cylinder Head - LH: Material
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A | - |
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent | WSS-M2C930-A |

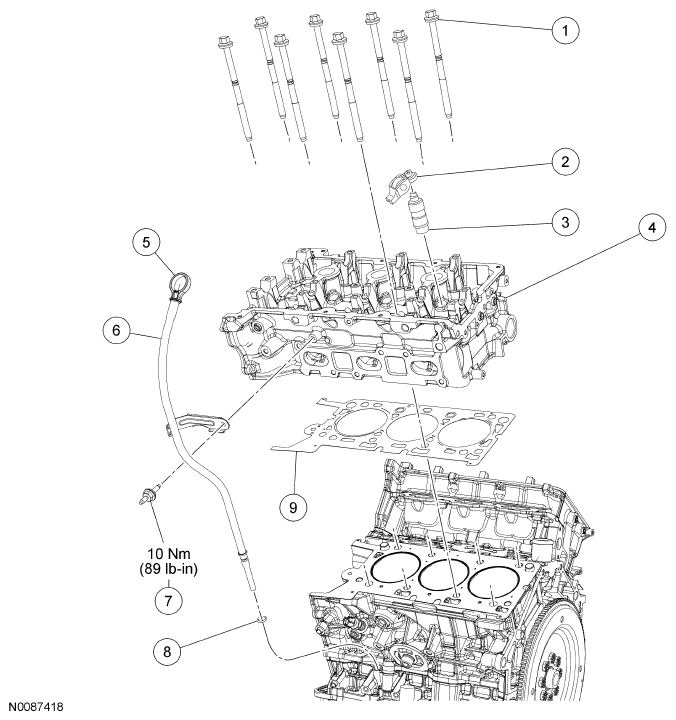

LH Cylinder Head
PART NUMBER DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 6065 | Cylinder head bolt (8 required) |
| 2 | 6529 | Camshaft roller follower (12 required) |
| 3 | 6C501 | Hydraulic lash adjuster (12 required) |
| 4 | 6050 | Cylinder head |
| 5 | 6750 | Oil level indicator |
| 6 | 6754 | Oil level indicator tube |
| 7 | W701822 | Oil level indicator tube stud bolt |
| 8 | 110282 | Oil level indicator tube O-ring |
| 9 | 6083 | Cylinder head gasket |

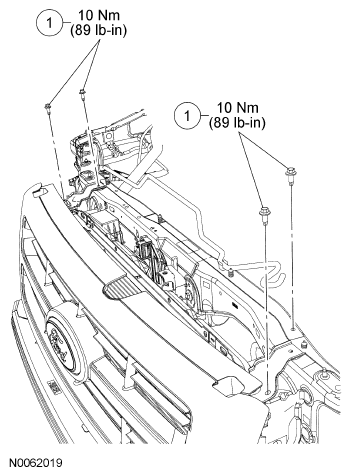

Upper Radiator Support Brackets
PART NUMBER DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W707399 | Upper radiator support bracket bolts |
