Cylinder Head: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Using the Valve Stem Oil Seal Installer, install the valve stem seal.

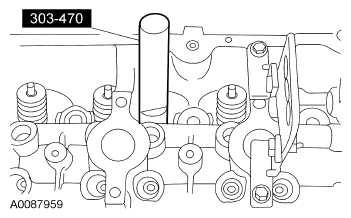

    Fig 1: Installing Valve Stem Seal
    G06095807Courtesy of FORD MOTOR CO.
  2. Install the valve.
  3. Using the Valve Spring Compressors, install the valve spring, retainer and keys.
    Fig 2: Installing Keys, Retainer And Spring
    G06095806Courtesy of FORD MOTOR CO.
