Degas Bottle: Notes
WARNING: This page is about a different variant/trim than selected.

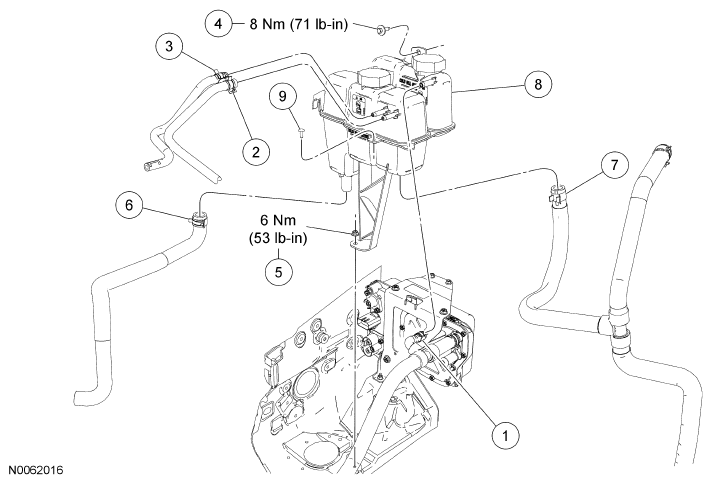

ITEM SPECIFICATIONS
| Item | Part Number | Description |
|---|---|---|
| 1 | 8B274 | Motor Electronics Cooling System (MECS) coolant vent hose and clamp |
| 2 | 8W005 | Engine coolant vent hose and clamp |
| 3 | 8W005 | Engine coolant vent hose and clamp |
| 4 | W707257 | Degas bottle-to-bracket bolt |
| 5 | W707142 | Degas bottle-to-fender nut |
| 6 | 8C633 | Engine coolant return hose and clamp |
| 7 | 8A567 | MECS coolant return hose and clamp |
| 8 | 8A080 | Degas bottle |
| 9 | - | Pin-type retainer |
