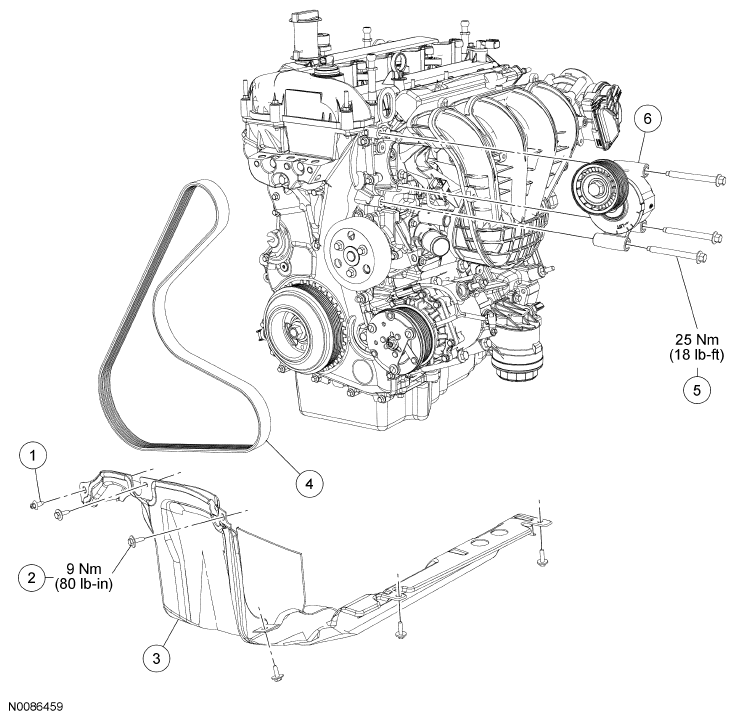

Front End Accessory Drive (FEAD) - Exploded View
WARNING: This page is about a different variant/trim than selected.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W706713 | RH splash shield pin-type retainer |
| 2 | W707257 | RH splash shield bolt (5 required) |
| 3 | 16A573 | RH splash shield |
| 4 | 6C301 | Accessory drive belt |
| 5 | W500317 | Accessory drive belt tensioner bolts (3 required) |
| 6 | 6A228 | Accessory drive belt tensioner |
- For additional information, refer to the appropriate procedures.
