Special Tool(s)
WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS DESCRIPTION CHART
 Courtesy of FORD MOTOR CO.
|
Aligner, Crankshaft Sensor
303-1417 |
 Courtesy of FORD MOTOR CO.
|
Timing Peg, Crankshaft TDC
303-507 |

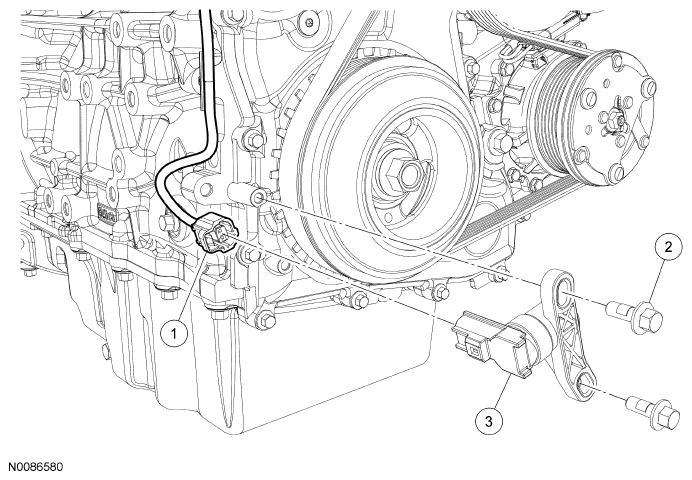

Courtesy of FORD MOTOR CO. PART DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
14A464 |
Crankshaft Position (CKP) sensor electrical connector (part of 12C508) |
| 2 |
W701219 |
CKP sensor bolt (2 required) |
| 3 |
6C315 |
CKP sensor |
