Crankshaft Position (CKP) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.
    NOTE: Only hand-tighten the bolt or damage to the front cover can occur.

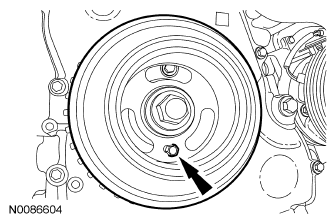

    Fig 1: Locating Crankshaft Pulley Bolt
    G06096794Courtesy of FORD MOTOR CO.
  1. Install a 6 mm x 18 mm bolt in the crankshaft pulley and thread it into the front cover.
  2. Install the CKP sensor and the 2 bolts.
    • Do not tighten the bolts at this time.
      Fig 2: Locating CKP Sensor With Mounting Bolts
      G06096795Courtesy of FORD MOTOR CO.
  3. Adjust the CKP sensor with the Crankshaft Sensor Aligner.
    • Tighten the 2 CKP bolts to 7 Nm (62 lb-in).
      Fig 3: Adjusting CKP Sensor Using Crankshaft Sensor Aligner
      G06096796Courtesy of FORD MOTOR CO.
  4. Connect the CKP sensor electrical connector.
  5. Remove the 6 mm x 18 mm bolt from the crankshaft pulley.
  6. Install the engine plug bolt.
    • Tighten to 20 Nm (177 lb-in).
  7. Install the RH splash shield, 5 bolts and the pin-type retainer (not shown).

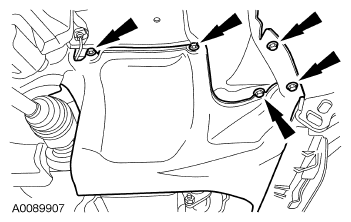

    Fig 4: Locating RH Splash Shield Bolts
    G06096797Courtesy of FORD MOTOR CO.
