Fire Suppression Manifold : Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown in illustration, RH side similar.

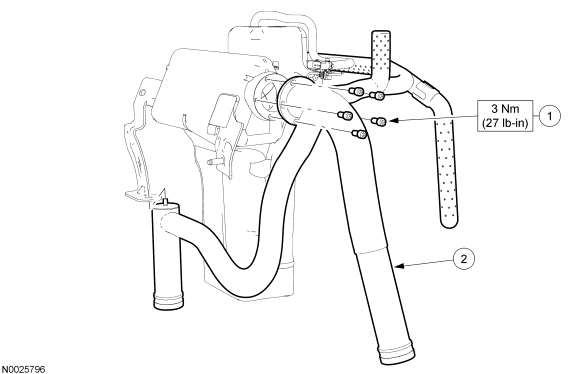

Fig 1: Exploded View Of Fire Suppression Manifold With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Fire suppression manifold bolts (5 required) (part of 19H280/19H281)
2	19H280/19H281	Fire suppression manifold (RH/LH)
