Intake Manifold: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |

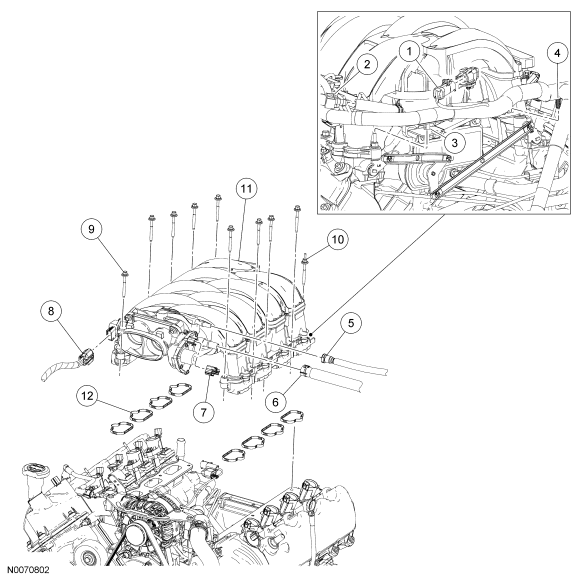

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Charge motion control valve (CMCV) electrical connector (part of 12B637) |
| 2 | 9F792 | Vacuum hose T-fitting |
| 3 | - | Wiring harness retainer (part of 12B637) |
| 4 | - | Wiring harness pin-type retainer (part of 12B637) |
| 5 | 9G271 | Evaporative emissions (EVAP) tube |
| 6 | 6K817 | PCV tube |
| 7 | 14A464 | Electronic throttle body (TB) electrical connector (part of 12B637) |
| 8 | 14A464 | Throttle position (TP) sensor electrical connector (part of 12B637) |
| 9 | W709552 | Intake manifold bolt (9 required) |
| 10 | W710464 | Intake manifold stud bolt |
| 11 | 9425 | Intake manifold |
| 12 | 9439 | Intake manifold gasket (8 required) |
