Exhaust Manifold - LH: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	3-Bar Engine Support Kit	303-F072
Courtesy of FORD MOTOR CO.	Lifting Brackets, Engine	303-050 (T70P-6000)

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-

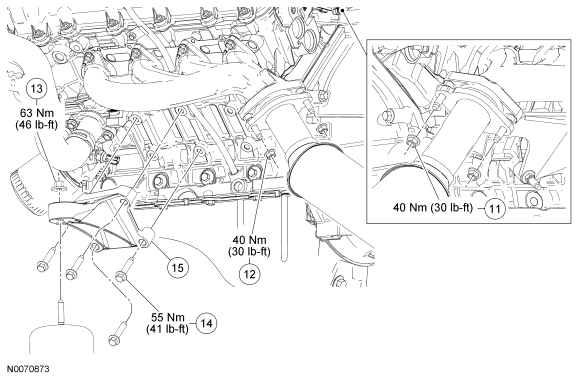

Fig 1: Engine Support Insulators With Torque Specifications (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Pin-type retainer
2	8C291	Radiator sight shield
3	W705790	B+ terminal nut
4	-	B+ terminal cover (part of 14305)
5	14A4644	Generator electrical connector (part of 14305)
6	-	Wiring harness pin-type retainer (part of 14305)
7	N804758	Generator nut (2 required)
8	N807309	Generator bracket bolt
9	W704682	Generator bracket bolt
10	10300	Generator

Fig 2: Engine Support Insulators With Torque Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
11	W701706	RH catalytic converter-to-exhaust manifold nut (2 required)
12	W701706	LH catalytic converter-to-exhaust manifold nut (2 required)
13	N621943	LH engine support insulator nut
14	W500721	LH engine support insulator bracket bolt (4 required)
15	6B033	LH engine support insulator bracket

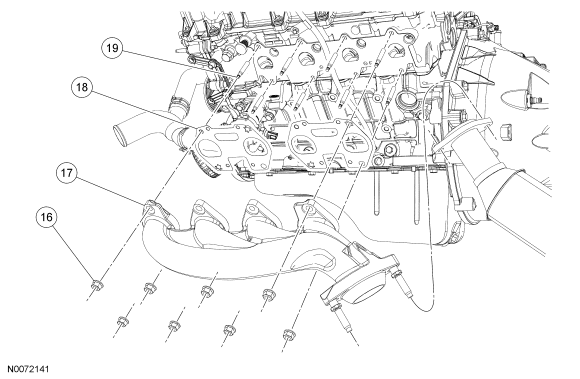

Fig 3: Identifying Engine Support Insulators (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
16	W701706	LH exhaust manifold nut (8 required)
17	9431	LH exhaust manifold
18	9Y431	LH exhaust manifold gasket (2 required)
19	W707747	LH exhaust manifold studs (8 required)
