Timing Drive Components - Camshaft Drive Cassette, LH: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 303-564 | 303-578 (T97T-6256-A) | |
| Holding Tool, Camshaft Sprocket | 303-564 (T97T-6256) | |
| Holding Tool, Crankshaft | 303-674 |

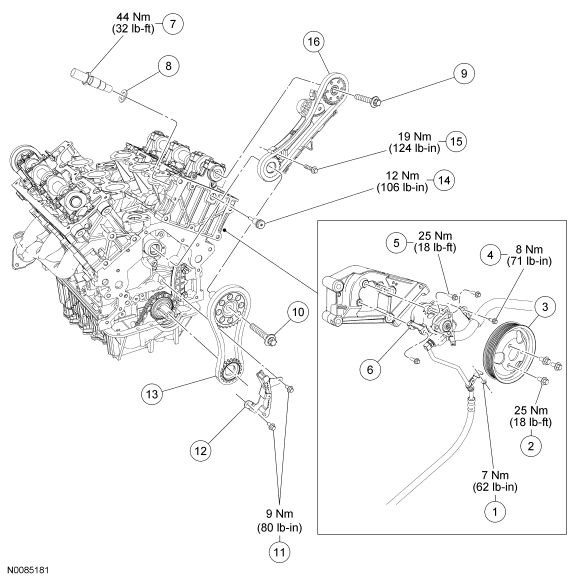

Fig 1: Exploded View Of LH Timing Drive Components Camshaft Drive Cassette With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W520101 | Power Steering Pressure (PSP) tube bracket nut |
| 2 | N605784 | Power steering pump pulley bolt (3 required) |
| 3 | 3A733 | Power steering pump pulley |
| 4 | W500213 | Suction hose bracket bolt |
| 5 | W700839 | Power steering pump bolt (3 required) |
| 6 | 3A674 | Power steering pump |
| 7 | 6K254 | Hydraulic chain tensioner |
| 8 | 6M252 | LH hydraulic chain tensioner washer |
| 9 | 6M276 | Camshaft sprocket bolt |
| 10 | 6M276 | Jackshaft sprocket bolt |
| 11 | W500011 | Primary chain tensioner bolts |
| 12 | 6M271 | Primary chain tensioner |
| 13 | - | Primary chain and sprocket assembly |
| 14 | 6U001 | LH cassette-to-cylinder head bolt |
| 15 | W500110 | LH cassette-to-cylinder block bolt |
| 16 | 6M289 | Timing chain and guide assembly |
