Lower End Components - Exploded View, Crankshaft Pulley and Crankshaft Front Seal
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

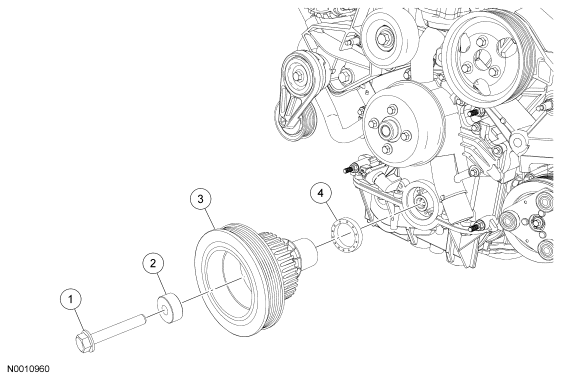

Fig 1: Exploded View Of Crankshaft Pulley & Crankshaft Front Seal
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
E800511
Crankshaft pulley bolt
2
-
Washer
3
6B321
Crankshaft pulley
4
6700
Crankshaft front oil seal
For additional information, refer to the procedures.
