Exhaust Manifold - LH: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

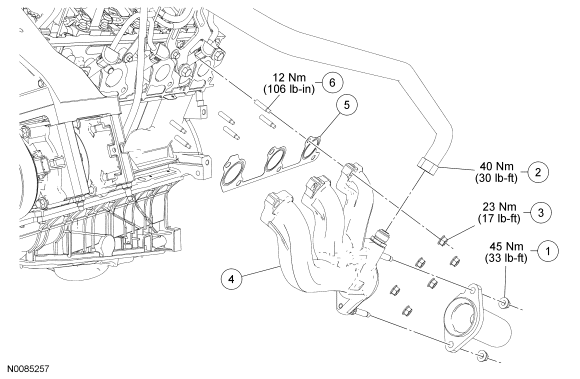

| Item | Part Number | Description |
|---|---|---|
| 1 | W701706 | LH catalytic converter-to-exhaust manifold nut (2 required) |
| 2 | - | EGR system module tube fitting (part of 9E649) |
| 3 | W701706 | LH exhaust manifold nut (6 required) |
| 4 | 9431 | LH exhaust manifold |
| 5 | 9448 | LH exhaust manifold gasket |
| 6 | W705495 | LH exhaust manifold stud (6 required) |
