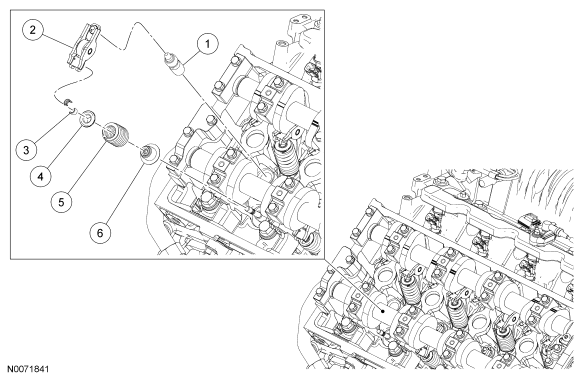

Valve Train Components - Exploded View
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6C501 | Hydraulic lash adjuster (32 required) |
| 2 | 6529 | Camshaft roller follower (32 required) |
| 3 | 6518 | Valve spring retainer key (64 required) |
| 4 | 6514 | Valve spring retainer (32 required) |
| 5 | 6513 | Valve spring (32 required) |
| 6 | 6A517 | Valve seal (32 required) |
- For additional information, refer to the procedures.
