Lower End Components - Exploded View, Crankshaft Pulley and Crankshaft Front Seal

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

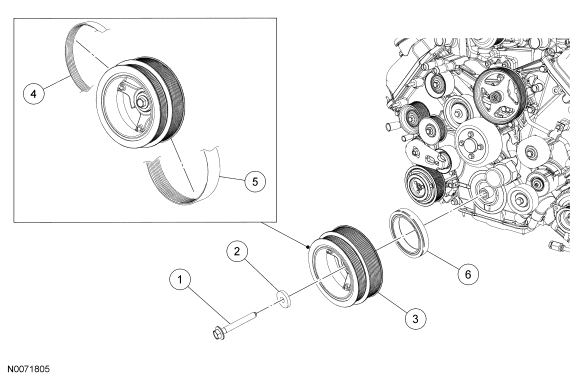

Fig 1: Exploded View Of Crankshaft Pulley & Crankshaft Front Seal - Lower End Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6A340	Crankshaft pulley bolt
2	N806165	Crankshaft pulley washer
3	6316	Crankshaft pulley
4	8620	Accessory drive belt
5	8620	Supercharger (SC) drive belt
6	6700	Crankshaft front seal

For additional information, refer to the procedures.
