Exhaust Manifold - LH: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
Motorcraft Metal Surface Prep
ZC-31-A		 -
Motorcraft SAE 5W-50 Full Synthetic Motor Oil
XO-5W50-QGT or equivalent		 WSS-M2C931-B
Fig 1: Exploded View Of LH Exhaust Manifold With Torque Specifications (1 Of 2)
GF0000443Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W702600 Intermediate steering shaft bolt
2 3C662 Intermediate steering shaft
3 W707137 Dash boot nut (2 required)
4 6714 Engine oil filter

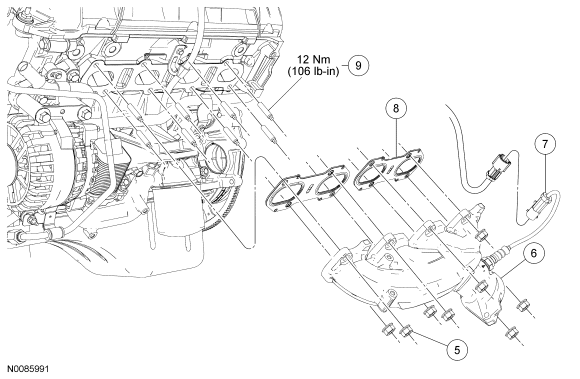

Fig 2: Exploded View Of LH Exhaust Manifold With Torque Specification (2 Of 2)
GF0046349Courtesy of FORD MOTOR CO.
Item Part Number Description
5 W701706 LH exhaust manifold nut (8 required)
6 9431 LH exhaust manifold
7 14A464 LH heated oxygen sensor (HO2S) electrical connector (part of 12B637)
8 9Y431 LH exhaust manifold gasket (2 required)
9 W707747 LH exhaust manifold stud (8 required)
