Camshaft - LH: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Holding Tool, Camshaft	303-446 (T93P-6256-AHR)

Material

Item	Specification
Motorcraft SAE 5W-50 Full Synthetic Motor Oil XO-5W50-QGT or equivalent	WSS-M2C931-B

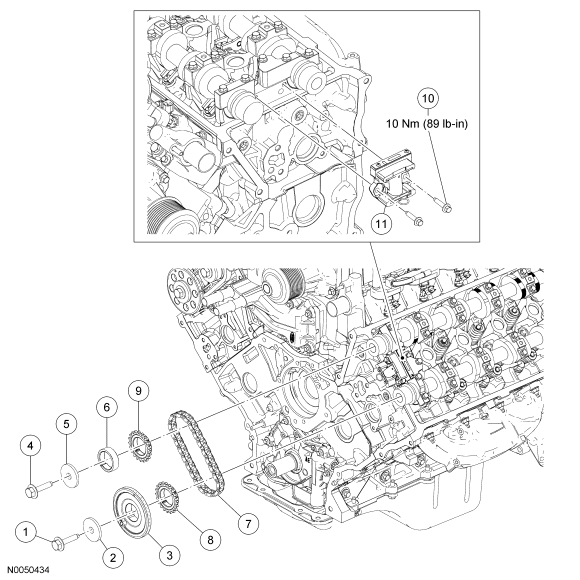

Fig 1: Exploded View Of LH Camshaft With Torque Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N811085	Camshaft drive sprocket bolt
2	N806164	Camshaft drive sprocket washer
3	6C253	Camshaft drive sprocket
4	N811085	Camshaft drive sprocket bolt
5	N806164	Camshaft drive sprocket washer
6	6265	Camshaft drive sprocket spacer
7	6268	Secondary timing chain
8	6256	Exhaust camshaft drive sprocket
9	6256	Intake camshaft drive sprocket
10	W500215	LH secondary timing chain tensioner bolt (2 required)
11	6C271	LH secondary timing chain tensioner

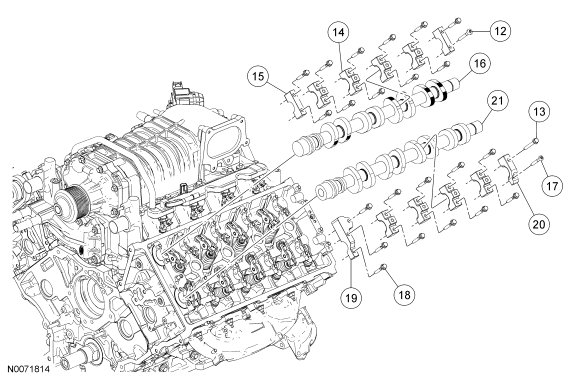

Fig 2: Exploded View Of LH Camshaft (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
12	W710990	Intake camshaft bearing cap bolt
13	N807352	Intake/exhaust camshaft bearing cap bolt (22 required)
14	6B277	Intake/exhaust camshaft bearing cap (8 required)
15	6B277	Intake camshaft bearing cap (2 required)
16	6A271	LH intake camshaft
17	W710991	Exhaust camshaft bearing cap bolt
18	W705438	Exhaust camshaft bearing cap bolt (3 required)
19	6B278	Exhaust camshaft bearing cap
20	6B278	Exhaust camshaft bearing cap
21	6A273	LH exhaust camshaft
