Instrument Panel Center Finish Panel: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

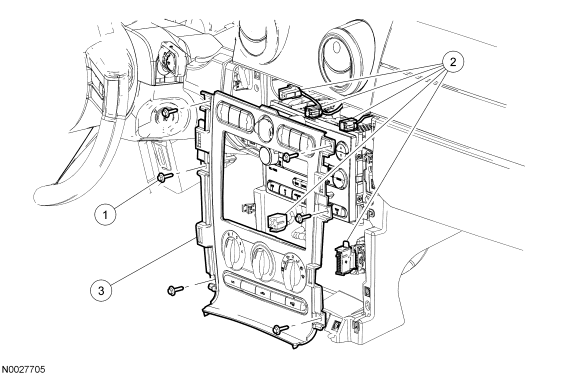

Fig 1: Identifying Instrument Panel Center Finish Panel
GF0014834Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705314 Instrument panel center finish panel screw (6 required)
2 - Instrument panel center finish panel electrical connectors (5 required) (part of 14401)
3 6304302 Instrument panel center finish panel
