Cowl Vent Screen
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

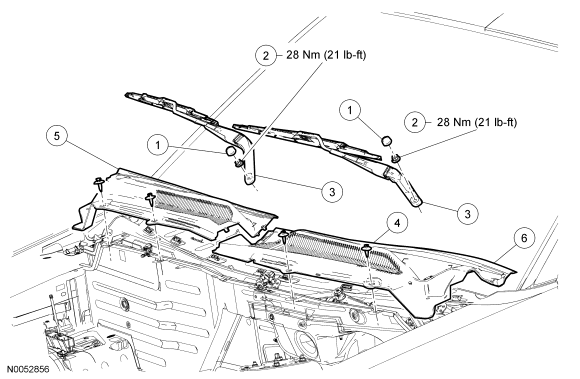

| Item | Part Number | Description |
|---|---|---|
| 1 | 17D515 | Wiper pivot arm nut covers (2 required) |
| 2 | W706109 | Wiper pivot arm nuts (2 required) |
| 3 | 175261/17527 | Wiper pivot arms |
| 4 | N804837 | Cowl vent screen pin-type retainer (4 required) |
| 5 | 63018A14 | RH cowl vent screen |
| 6 | 63018A15 | LH cowl vent screen |
- Remove the 2 wiper pivot arms. For additional information, refer to WIPERS AND WASHERS article.
- Remove the 4 cowl vent screen pin-type retainers.
- Remove the RH and LH cowl vent screens.
- To install, reverse the removal procedure.
NOTE:
The RH cowl vent screen overlaps the LH cowl vent screen and must be removed first.
