Safety Belt Retractor and Pretensioner: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

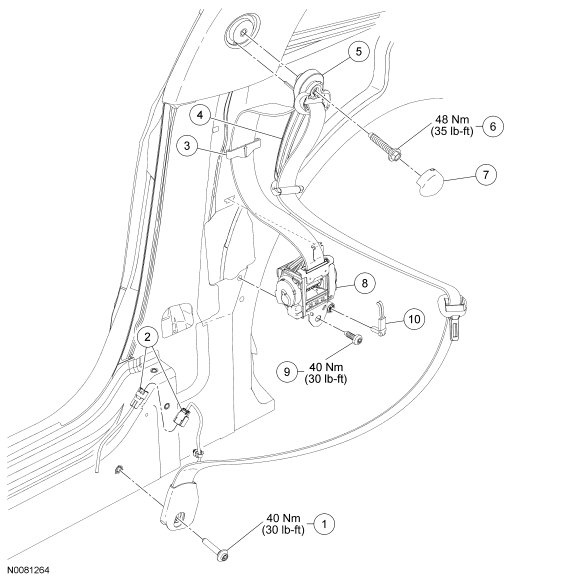

NOTE:
RH shown in illustration, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Safety belt retractor and pretensioner anchor bolt (part of 611B08 RH/ 611B09 LH) |
| 2 | - | Belt Tension Sensor (BTS) electrical connector (part of 611B08) |
| 3 | - | Secondary safety belt guide (part of 611B08 RH/ 611B09 LH) |
| 4 | - | Safety belt presenter (part of 611B08 RH/ 611B09 LH) |
| 5 | - | D-ring (part of 611B08 RH/ 611B09 LH) |
| 6 | - | D-ring bolt (part of 611B08 RH/ 611B09 LH) |
| 7 | 60262 | D-ring cover |
| 8 | 611B08 RH/ 611B09 LH | Safety belt retractor and pretensioner |
| 9 | - | Safety belt retractor and pretensioner bolt (part of 611B08 RH/ 611B09 LH) |
| 10 | - | Safety belt retractor and pretensioner electrical connector (part of 14A005) |
NOTE:
LH shown in illustration, RH similar.

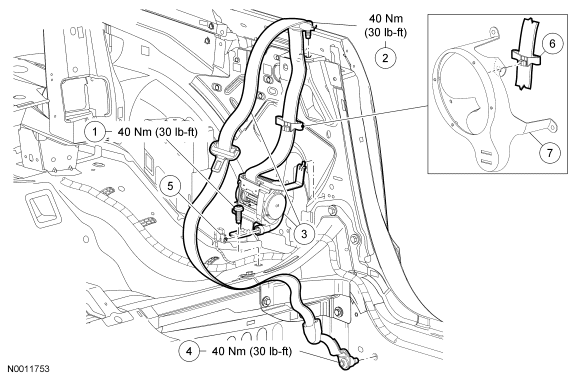

Fig 2: Exploded View Of Safety Belt Retractor & Pretensioner With Torque Specifications - Convertible
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Safety belt retractor and pretensioner bolt (part of 611B09 LH/ 611B08 RH) |
| 2 | - | D-ring bolt (part of 611B09 LH/ 611B08 RH) |
| 3 | 611B09 LH/ 611B08 RH | Safety belt retractor and pretensioner |
| 4 | - | Safety belt anchor bolt (part of 611B09 LH/ 611B08 RH) |
| 5 | - | Safety belt retractor and pretensioner electrical connector (part of 14A005) |
| 6 | - | Secondary safety belt guide (part of 611B09 LH/ 611B08 RH) |
| 7 | 18963 | Speaker bracket |
